1000V Nh Fuse Link Photovoltaic Fuse for Solar Energy System

Basic Info

Model NO.	CF014
Form of Installation	Insurance Piece Holder
Environmental Protection	Environmental Protection Fuse Holder
Execution Standard	National Standard
Fusing Speed	M
Brand	Sm
Voltage	up to 1000VDC
Current	up to 400A
Breaking Capacity	20ka
Time Constanttime Constanttime Constant	1-3ms
Transport Package	Standard Export Carton
Specification	Up to 1000Vdc
Trademark	SM
Origin	China
HS Code	8536100000
Production Capacity	100000PCS/Month

Product Description

Unlike typical grid-tied AC systems, the short-circuit current available within a PV system is limited, and over-current protection devices need to operate effectively at low fault current levels. CFPV fuses can protect your off-grid or grid-tied PV system from accidental ground faults and line faults.

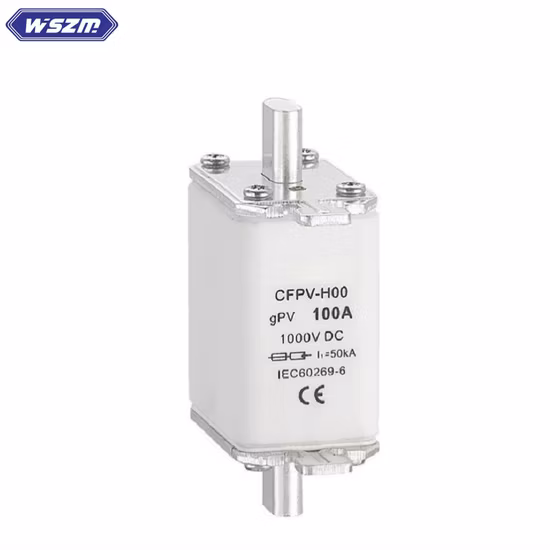

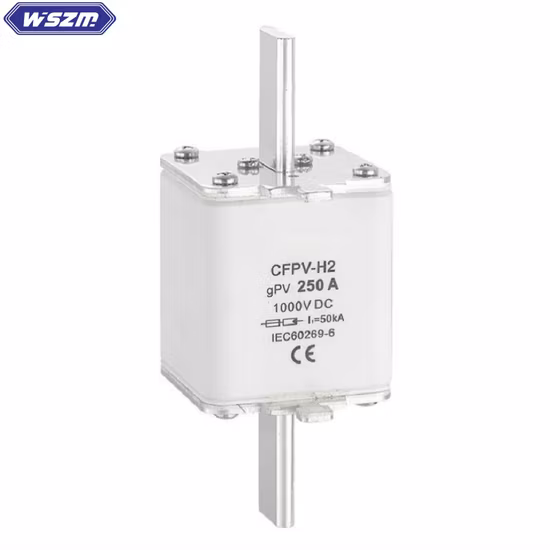

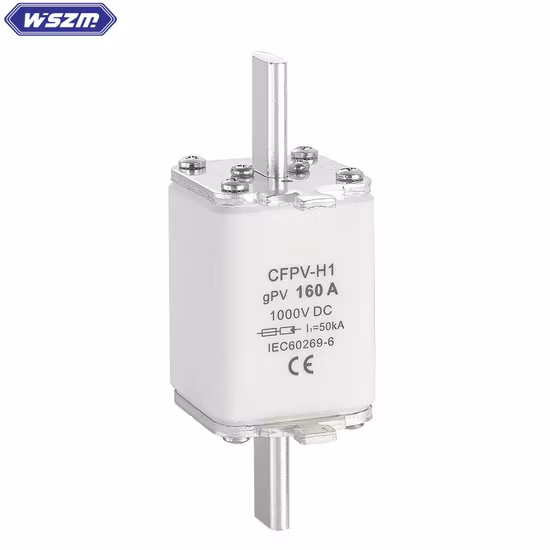

We have offered a compact, safe and economic circuit protect solution for solar system. As one of the solar broad portfolio of fuse products, the 1000Vdc CFPV NH fuses are specifically designed for the protection of photovoltaic system. The rated voltage of this series of fuses is up to 1000Vdc, the rated current is up to 50A, and the rated breaking capacity is up to 50KA. Fuse link element is encapsulated in the high-strength ceramics with the benefits of compact body size and high capacity of thermal shock resistance.

Features & Benefits
Long service life
Good temperature cycle withstand capability
Excellent performance at temperature extremes
High breaking capacity
Complete circuit protection

Application
1000V array combiner box
1000V central inverter
1000V disconnects
1000V string inverter

Supply Ability100000 Piece/Pieces per Month

Packaging & DeliveryPackaging Detailspacking by standard export carton, or according to customer's requestLead Time:Quantity(Pieces) 1 - 5000 >5000Est. Time(days) 15 To be negotiatedDetailed PhotosSpecification

Product Series	CFPV NH
Ratings
Voltage	Up to 1000Vdc
Current	Up to 400A
Breaking Capacity	20kA
Time constant	1-3ms
Operating class	IEC60269-6 gPV class UL UL® Listed to 248-19, Guide JFGA,
Country of Origin	China

Voltage	Up to 1000Vdc
Current	Up to 400A
Breaking Capacity	20kA
Time constant	1-3ms
