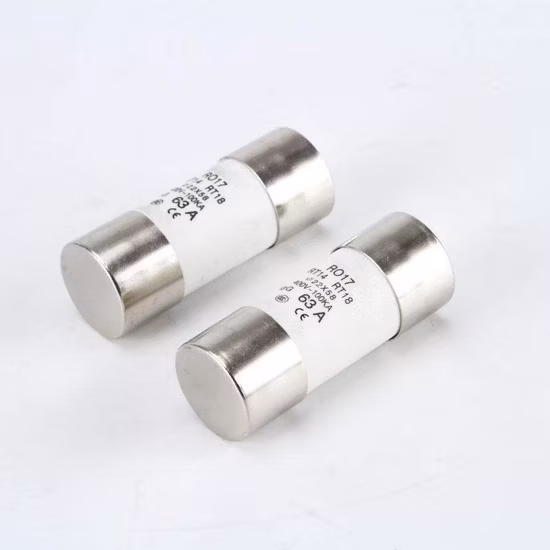

Barrel Type Cylindrical Fuse with CE Approval

Basic Info

Model NO.	RT18
Shape	Circle
Fusing Speed	FF
Fusing Device	Discoloration
Standard	UL
Specification	22*58
Trademark	LR
Origin	China
Production Capacity	100000PCS/Month

Packaging & Delivery

Package size per unit product 20.00cm * 35.00cm * 15.00cm Gross weight per unit product 15.000kg

Product Description

1. Application This series fuse is suitable for AC 50Hz, rated voltage to 600V, rated current to 125A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for rotecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short-circuit (aM). The rated breaking capacity is to 100KA. They conform to national standard GB13539 and internationalelectrical committee standard IEC60269.

2.Construction Feature

This series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.

Cylindrical HRC Fuse Link

Dimension	22*58	30*27
Rated voltage	AC415V	AC415V
Rated breaking capacity	80KV	80KV
Standard	IEC 60269 BS 1361	IEC 60269 BS
Rated current	30A, 40A, 80A	30A,40A,80A
